Rahimafrooz RZ Solar IPS Full Set (Without Panel) - 24 Months Warranty
SL IPS Model  Retail Price* Recommended Battery with Panel Bty Qty Watt* General Consumption Pattern
1 IPS SL 935/12V             57,000 IPB 150 FT,
Panel Watt - 150Wp
Panel QTY - 4		 1 560-600 6 LED Light (15W) + 4 Fan (80W) + 1 LED 24” TV (100W)
2 IPS SL 1250/12V              66,000 IPB 200 FT,
Panel Watt - 150Wp
Panel QTY - 6		 1 750-800 8 LED Light (20W) + 5 Fan (80W) + 1 LED 24” TV (100W)
3 IPS SL 1735/24V             94,000 IPB 150 FT,
Panel Watt - 300Wp,
Panel QTY - 4		 2 1060-1100 10 LED Light (20W) + 5 Fan (80W) + 1 LED 24” TV (100W) + 1 Computure (250 W)
4 IPS SL 2200/24V             110,400 IPB 200 FT,
Panel Watt - 300Wp
Panel QTY - 5		 2 1260-1280 14 LED Light (20W) + 6 Fan (80W) + 1 LED 24” TV (100W) + 1 Computure (250 W)
5 IPS SL 2KVA/24V             132,000 IPB 200 FT,
Panel Watt - 300Wp
Panel QTY - 6		 2 1500-1600 16 LED Light (20W) + 7 Fan (80W) + 1 LED 49” TV (200W) + 1 Computure (250 W)
6 IPS SL 3KVA/48V             229,000 IPB 150 FT,
Panel Watt - 300Wp
Panel QTY - 9		 4 2300-2400 20 LED Light (20W) + 10 Fan (80W) + 1 LED 49” TV (200W) + 2 Computure (250 W)


Rahimafrooz RZ Solar IPS Full Set (With Panel) - TOTAL PRICE BDT

SL IPS Model  Retail Price* Recommended Battery with Panel Bty Qty Watt* General Consumption Pattern
1 IPS SL 935/12V  121,050 +SC IPB 150 FT,
Panel Watt - 150Wp
Panel QTY - 4		 1 560-600 6 LED Light (15W) + 4 Fan (80W) + 1 LED 24” TV (100W)
2 IPS SL 1250/12V   154,700 +SC IPB 200 FT,
Panel Watt - 150Wp
Panel QTY - 6		 1 750-800 8 LED Light (20W) + 5 Fan (80W) + 1 LED 24” TV (100W)
3 IPS SL 1735/24V  202,150+SC IPB 150 FT,
Panel Watt - 300Wp,
Panel QTY - 4		 2 1060-1100 10 LED Light (20W) + 5 Fan (80W) + 1 LED 24” TV (100W) + 1 Computure (250 W)
4 IPS SL 2200/24V  243,050 +SC IPB 200 FT,
Panel Watt - 300Wp
Panel QTY - 5		 2 1260-1280 14 LED Light (20W) + 6 Fan (80W) + 1 LED 24” TV (100W) + 1 Computure (250 W)
5 IPS SL 2KVA/24V  288,600 +SC IPB 200 FT,
Panel Watt - 300Wp
Panel QTY - 6		 2 1500-1600 16 LED Light (20W) + 7 Fan (80W) + 1 LED 49” TV (200W) + 1 Computure (250 W)
6 IPS SL 3KVA/48V  453,600 +SC IPB 150 FT,
Panel Watt - 300Wp
Panel QTY - 9		 4 2300-2400 20 LED Light (20W) + 10 Fan (80W) + 1 LED 49” TV (200W) + 2 Computure (250 W)

Rahimafrooz RZ Solar IPS Control Unit - 24 Months Warranty
SL IPS Model  Retail Price* Recommended Battery with Panel  Bty Qty Watt* General Consumption Pattern
1 IPS SL 935/12V  18,100 IPB 150 FT
Panel Watt - 150Wp
Panel QTY - 4		 1 560-600 6 LED Light (15W) + 4 Fan (80W) + 1 LED 24” TV (100W)
2 IPS SL 1250/12V   23,000 IPB 200 FT
Panel Watt - 150Wp
Panel QTY - 6		 1 750-800 8 LED Light (20W) + 5 Fan (80W) + 1 LED 24” TV (100W)
3 IPS SL 1735/24V  27,900 IPB 150 FT
Panel Watt - 300Wp,
Panel QTY - 4		 2 1060-1100 10 LED Light (20W) + 5 Fan (80W) + 1 LED 24” TV (100W) + 1 Computure (250 W)
4 IPS SL 2200/24V  33,700 IPB 200 FT
Panel Watt - 300Wp
Panel QTY - 5		 2 1260-1280 14 LED Light (20W) + 6 Fan (80W) + 1 LED 24” TV (100W) + 1 Computure (250 W)
5 IPS SL 2KVA/24V  49,900 IPB 200 FT
Panel Watt - 300Wp
Panel QTY - 6		 2 1500-1600 16 LED Light (20W) + 7 Fan (80W) + 1 LED 49” TV (200W) + 1 Computure (250 W)
6 IPS SL 3KVA/48V  86,400 IPB 150 FT
Panel Watt - 300Wp
Panel QTY - 9		 4 2300-2400 20 LED Light (20W) + 10 Fan (80W) + 1 LED 49” TV (200W) + 2 Computure (250 W)
  * SC = Service Charge Depending on Connecting Areas

Rahimafrooz RZ SOLAR IPS RECOMMENDED BATTERY & PANEL
SL RZ Solar IPS  Recommended Battery Bty Qty MAX. PV VOLTAGE  for SOLAR IPS CU  Panel Watt Panel QTY
1 SL 935/12V  IPB 150 FT AH x 1 17V-23VDC 150Wp 4
2 SL 1250/12V   IPB 200 FT AH x 1 6
3 SL 1735/24V  IPB 150 FT AH x 2 34V-46VDC 300Wp 4
4 SL 2200/24V  IPB 200 FT AH x 2 5
5 SL 2KVA/24V  IPB 200 FT AH x 2 60V-94VDC 6
6 SL 3KVA/48V  IPB 150 FT AH x 4 60V-170VDC 9


Rahimafrooz RZ Solar Panel With Warranty
SL Item Name Unit Price
1 150Wp 10,400
2 300Wp 17,900


ACCESSORIES FOR SOLAR PANEL INSTALLATION
SL Item Name Unit Price
1 SOLAR PANEL ACCESSORIES FOR SL 935/12V  18,200
2 SOLAR PANEL ACCESSORIES FOR SL 1250/12V   26,500
3 SOLAR PANEL ACCESSORIES FOR SL 1735/24V  29,300
4 SOLAR PANEL ACCESSORIES FOR SL 2200/24V  37,900
5 SOLAR PANEL ACCESSORIES FOR SL 2KVA/24V  42,900
6 SOLAR PANEL ACCESSORIES FOR SL 3KVA/48V 57,900

CHARGE FOR SOLAR PANEL INSTALLATION
SL Item Name Unit Price
1 IPS SL 935/12V  3,300
2 IPS SL 1250/12V
3 IPS SL 1735/24V  6,400
4 IPS SL 2200/24V
5 IPS SL 2KVA/24V
6 IPS SL 3KVA/48V

          N.B. The above prices are subject to change without prior notice and deliveries are subject to availability

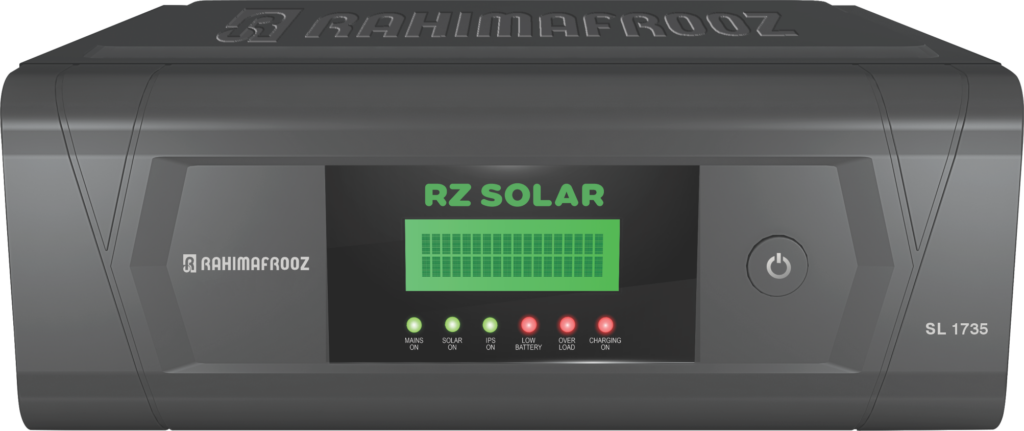

RZ Solar IPS 935, 1250, 1735 VA, 2KVA, 3KVA  :

Rahimafrooz Solar IPS are based on MICRO CONTROLLER/DSC BASED Technologies for Better Performance and High Reliability. These Technologies ensures Noiseless Performance, Quick Charging, More Load, Longer Battery Life & Longer Backups.
• Pure Sign wave Solar Hybrid IPS.
• Highly efficient  battery charging from Solar energy.
• Intelligent sharing of Grid current with Solar in case of Solar energy shortfall.
• Grid charge enable/disable slide switch.
• Solar panel compatible.
• Designed to give maximum benefit from Soar energy  and minimize your electricity bill.
• Suitable for all application.

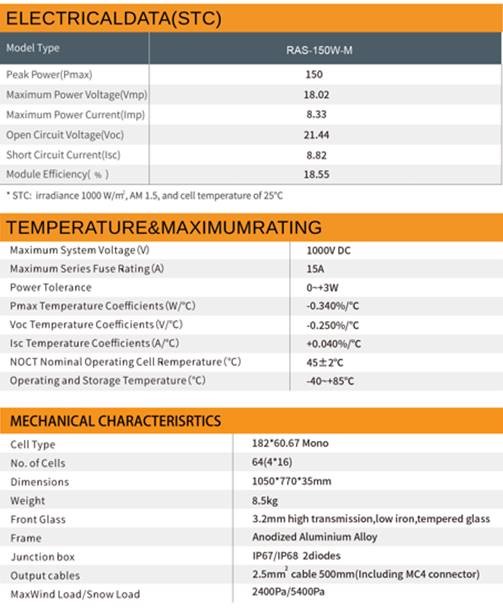

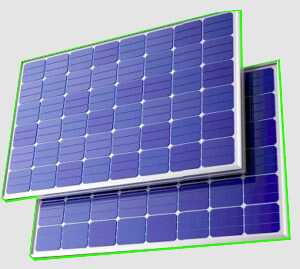

Solar Panel: Model – RAS 150 W :

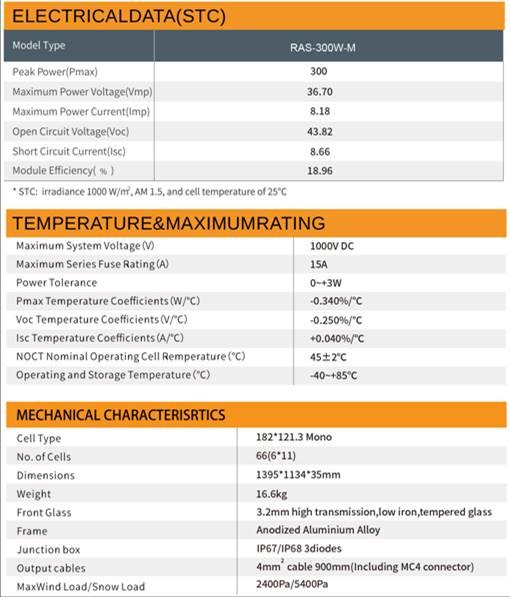

Solar Panel: Model – RAS 300 W


 ♦ Fans and coolers →

 ↪ Ceiling Fan 85W
 ↪ Room Cooler 250W
 ↪ Table Fan 50W

 ♦ Laptops and Computers →

 ↪ Laptop 100W

 ↪ Desktop 350W

 ♦ Lights →

 ↪ LED Bulb 5W

 ↪ LED Bulb 9W

 ↪ CFL Light 15W

 ↪ Tubelight 20W

 ↪ CFL Heavy 30W

 ↪ Tubelight 40W

 ↪ Light Bulb (Incandescent) 40W

 ↪ Light Bulb (Incandescent) 60W

 ↪ Light Bulb (Incandescent) 100W

 ♦ Home Appliances →

 ↪ Juicer Mixer Grinder 800W

 ↪ Toaster 800W

 ↪ Refrigerator (upto 200L) 300W

 ↪ Refrigerator (upto 500L) 500W

 ↪ Microwave Oven 1400W

 ↪ Vacuum Cleaner 1400W

 ↪ Washing Machine 1000W

 ↪ Geyser/Water Heater 2200W

 ↪ Room Heater 2200W

 ♦ TV & other entertainment →

 ↪ Television LED (upto 40") 60W

 ↪ Television CRT (upto 21") 100W

 ↪ Television Plasma 250W

 ↪ Set Top Box (DTH) 50W

 ↪ Music System 300W

 ↪ Gaming Console 200W

 ♦ ACs →

 ↪ Air Conditioner (1 Ton, 3 star) 1200W

 ↪ Air Conditioner (1.5 Ton, 3 star) 1700W

 ↪ Air Conditioner (2 Ton, 3 star) 2300W

 ↪ Air Conditioner (1 Ton, Inverter) 1100W

 ↪ Air Conditioner (1.5 Ton, Inverter) 1600W

 ↪ Air Conditioner (2 Ton, Inverter) 2100W

 ♦ Others →

 ↪ Photo Copier 2000W

 ↪ Office Printer/Scanner 2000W

 ↪ Petrol Filling Machine 1500W

 ↪ Projector 600W

 ↪ Surveillance System 100W

 ♦ Motors →

 ↪ Water Pump (0.5 HP) 400W

 ↪ Water Pump (1 HP) 800W
